Hinge Adjustment Guide
PDFFine tune your doors in three directions
Every Qwikkit hinge is 6-way adjustable

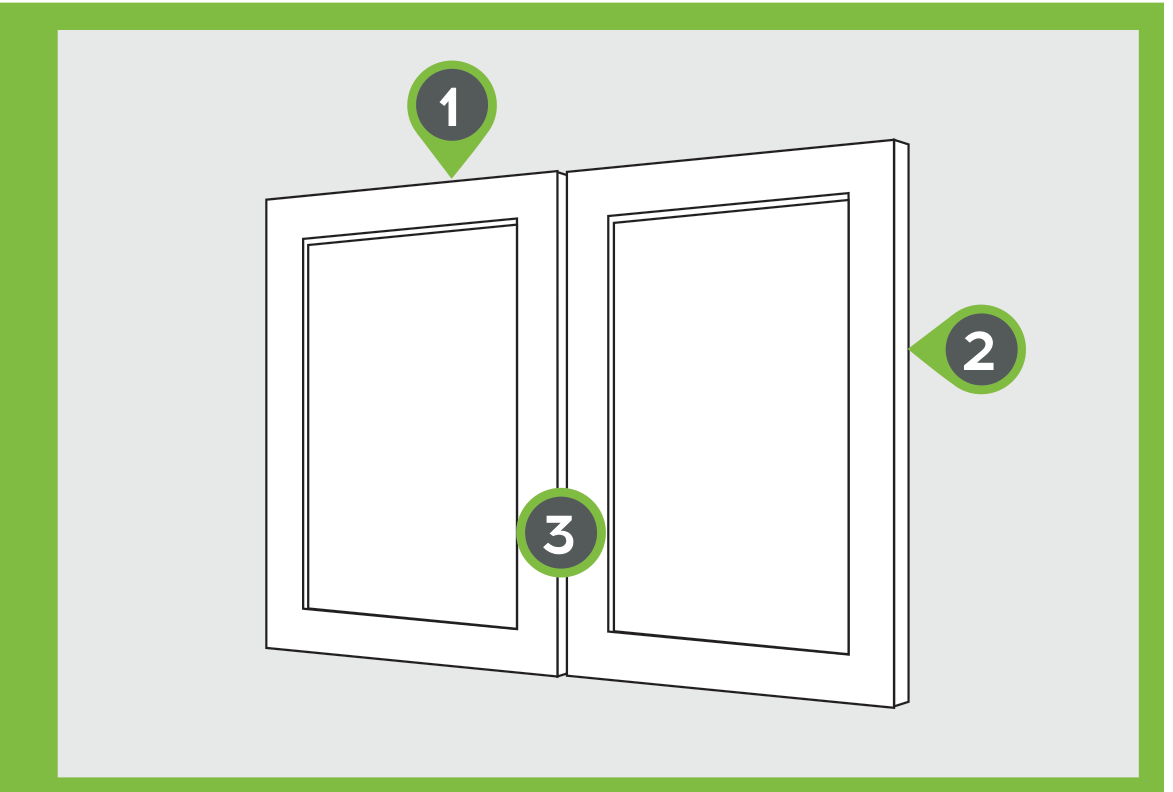

Our hinges fine tune in three directions, so you can line up doors after they are hung. These hinges ship with every Qwikkit kit, both DuraBuild™ and DuraFuse™.
- Up and down for door alignment.
- In and out to set the space between the door and the cabinet.
- Side to side to set the gap between two doors.
Which screw does what
The screws sit in slightly different spots on framed and frameless hinges. The moves are the same.

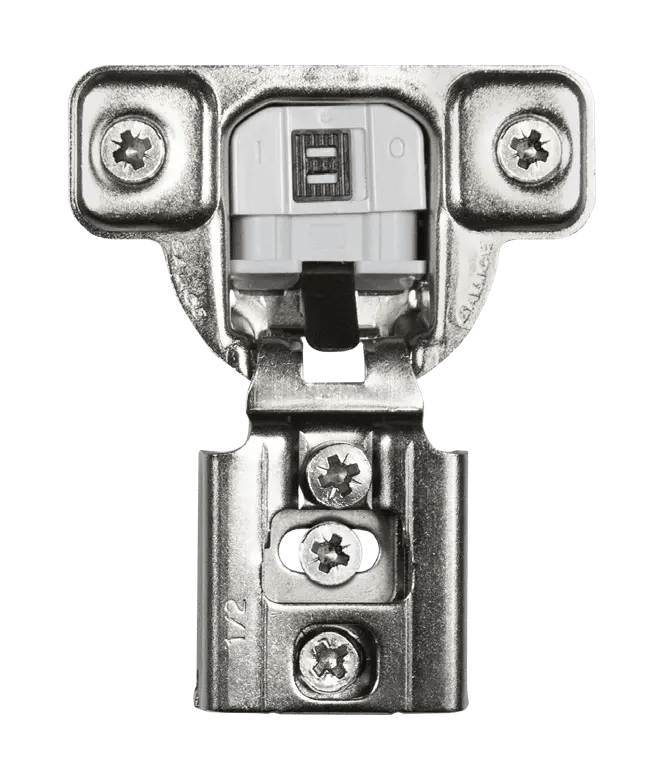

Framed cabinet hinges
- Center screw Loosen to move the door up and down.
- Back screw Turn to move the door in and out.
- Front screw Turn to move the door side to side.

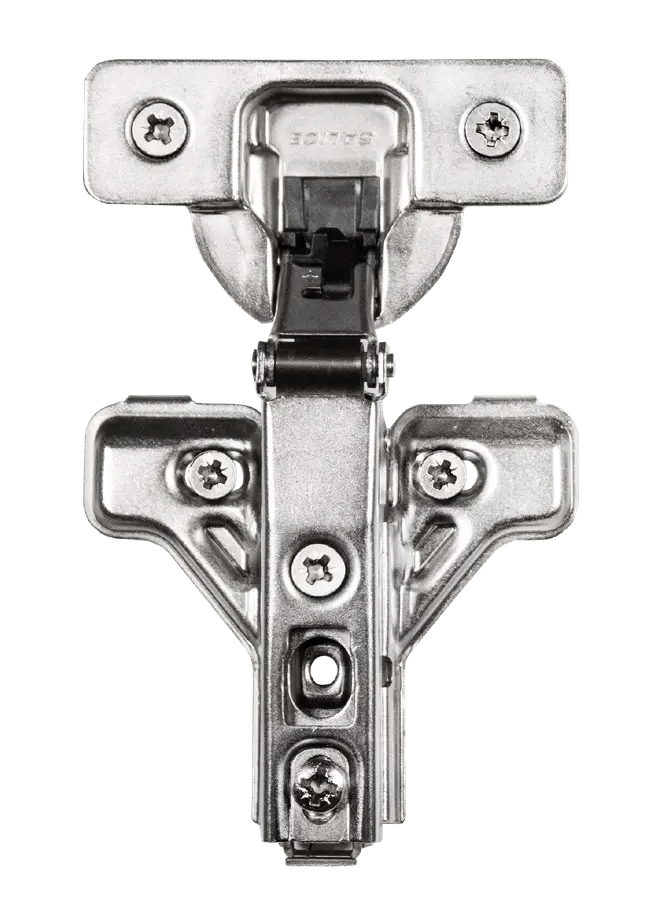

Frameless cabinet hinges
- Hinge plate screws Loosen to move the door up and down.
- Back screw Turn to move the door in and out.
- Front screw Turn to move the door side to side.
Not sure which hinge you have? Check whether your cabinets have a wooden frame around the front. Framed cabinets have one, frameless cabinets do not. The Hinge Offset Guidelines and the Hinge Restrictor Guide cover the rest of the hinge setup.
Common questions
What does 6-way adjustable mean?
The hinge can fine tune the door in three directions: up and down, in and out, and side to side. Every Qwikkit hinge is 6-way adjustable.
How do I move a door up or down?
Loosen the center screw on a framed hinge, or the hinge plate screws on a frameless hinge, then slide the door and retighten.
How do I set the gap between two doors?
Turn the front screw to move the door side to side. This closes or opens the gap between two doors.
How do I adjust the space between the door and the cabinet?
Turn the back screw to move the door in and out.
Do framed and frameless hinges adjust the same way?
Yes. Both adjust in the same three directions. The up and down screw is the center screw on framed hinges and the hinge plate screws on frameless hinges.
