Hinge Offset Guidelines
PDFHow Qwikkit spaces hinges on every door
How the offset works
The offset is the distance from the end of the door to the center of the hinge cup.
- The top and bottom hinge use the same offset. The standard offset is 3 inches.
- On a 3 hinge door, the middle hinge sits centered between the top and bottom hinge.
- On a 4 hinge door, the two middle hinges sit at one third and two thirds of the way between the top and bottom offset.
- Every hinge uses our standard boring pattern, which includes an 8mm dowel hole.
The standard offset is 3 inches. It can run as little as 2.5 inches or as much as 10 inches when a door needs it.

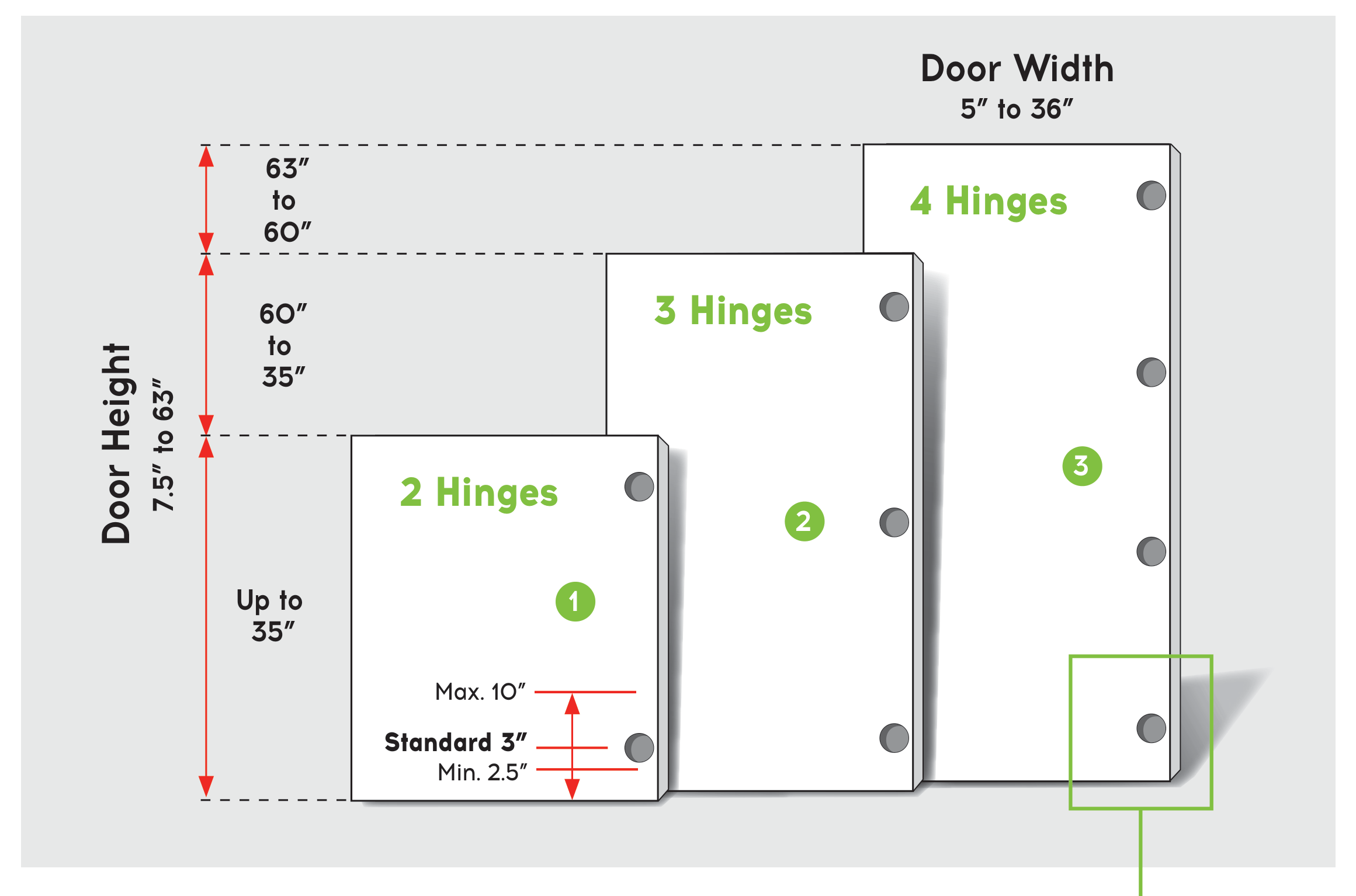

How many hinges your door needs
The number of hinges depends on door height. Taller doors need more hinges to stay flat and hang straight. Qwikkit doors run 7.5 to 63 inches tall and 5 to 36 inches wide, and every door ships with the right hinge count already set.
| Door height | Number of hinges |
|---|---|
| Up to 35" | 2 hinges |
| 35" to 60" | 3 hinges |
| 60" to 63" | 4 hinges |
Common questions
What is the standard hinge offset?
3 inches from the end of the door to the center of the hinge. It can run as little as 2.5 inches or as much as 10 inches if a door needs it.
Where do the middle hinges go?
On a 3 hinge door the middle hinge is centered between the top and bottom hinge. On a 4 hinge door the two middle hinges sit at one third and two thirds of the way between the top and bottom offset.

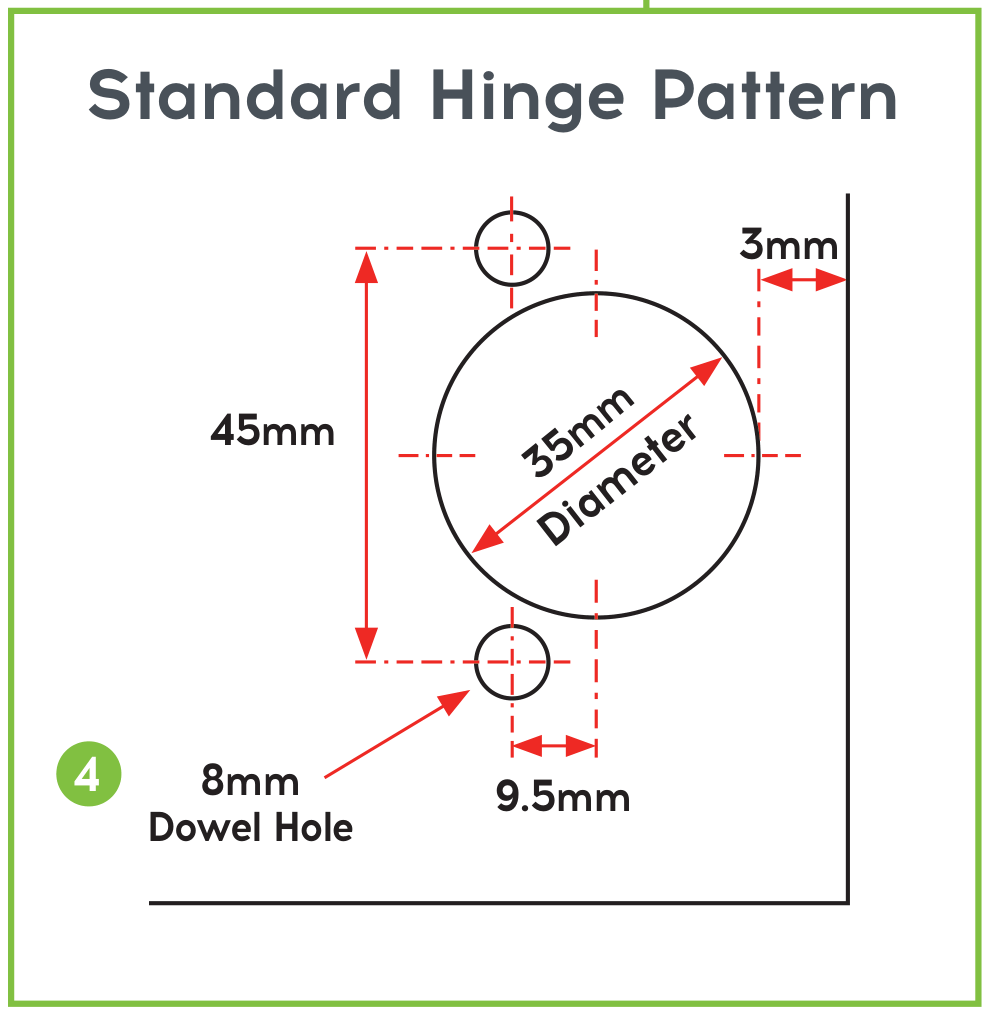

What is the boring pattern?
A 35mm cup set 3mm from the door edge, with 8mm dowel holes spaced 45mm apart and offset 9.5mm from the cup center.
What door sizes does this cover?
Doors 7.5 to 63 inches tall and 5 to 36 inches wide.
