Hinge Restrictor Guide
PDFKeep doors from banging into what is beside them
What a hinge restrictor does
A hinge restrictor is a small clip that limits how far a cabinet door opens. It caps the swing at 86 degrees, so a door stops before it hits a wall, an appliance, or the door next to it. Each pack comes with 10 clips.
You add restrictors when you install the kit. The clip snaps onto the hinge, so there are no extra tools and no drilling. Browse the rest of the hardware on the accessories page.
Find your restrictor clip
Pick the clip that matches your cabinet construction, hinge type, and overlay size.
| Restrictor clip | Item no. | Cabinet construction | Hinge type | Overlay size |
|---|---|---|---|---|
 |

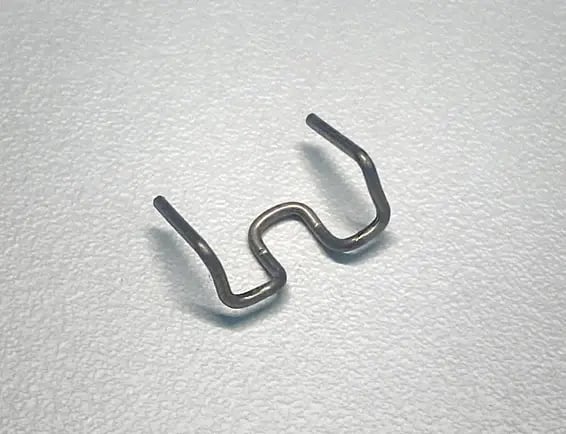

I-1243 | Frameless | All | All |
 |

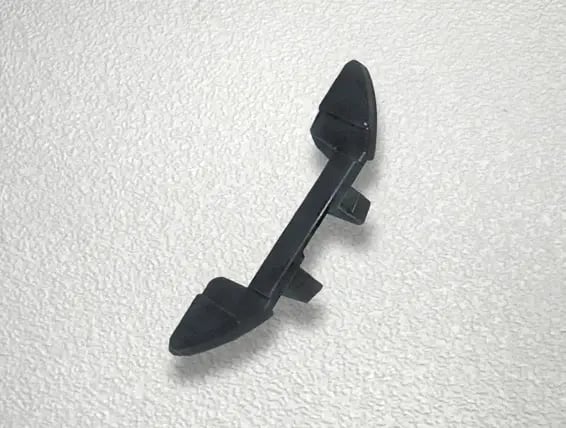

I-1245 | Framed | Self Close | 1/2", 3/4" |
 |

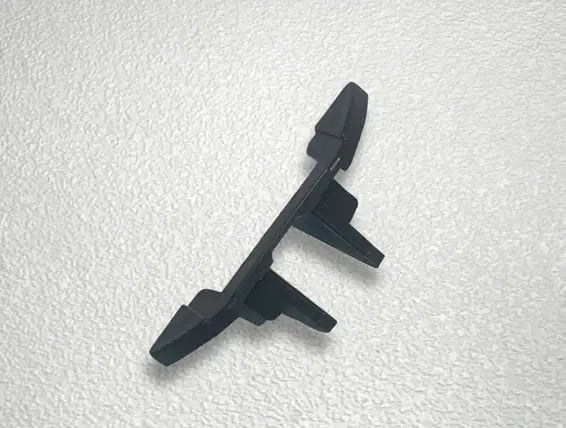

I-1266 | Framed | Self Close | 1", 1-1/4", 1-3/8" |
 |

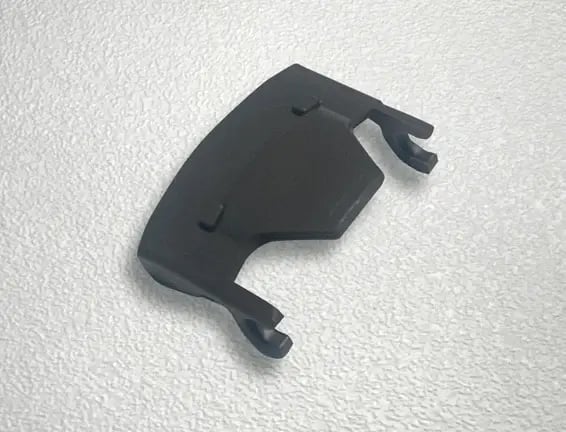

I-1247 | Framed | Soft Close | All |
Not sure if your cabinets are framed or frameless, or which hinge you have? The Hinge Adjustment Guide shows both hinge types side by side.
Common questions
What is a hinge restrictor?
A small clip that limits how far a cabinet door opens. It caps the swing at 86 degrees so the door stops before it hits a wall, an appliance, or the door beside it.
How far does a restrictor let a door open?
It limits the door to an 86 degree opening angle.
How many clips come in a pack?
Each pack contains 10 clips.
Which clip do I need?
Match the clip to your cabinet construction, hinge type, and overlay size using the table above. Frameless cabinets use I-1243. Framed cabinets with Self Close hinges use I-1245 or I-1266 by overlay, and Soft Close hinges use I-1247.
Do I need restrictor clips?
Only when a door would swing into something in its path. If your doors open freely, you do not need them. They are a low cost way to protect walls, appliances, and neighboring doors.
Ready to order?
Add restrictor clips to your next kit through the customer portal. Questions on your order? Call 844-484-3548 or email customerservice@qwikkit.com.
