DuraFuse Refacing Technical Guide
PDFEvery DuraFuse profile, color, accessory, hinge, and molding in one place.
Use this guide to see the DuraFuse™ door profiles and colors, the accessories that finish the job, and the hinge and molding options for the line.
For exact paint color codes and formulas, see the DuraFuse paint codes page. To browse the full lineup, visit the DuraFuse line or all door colors.
Offering chart
DuraFuse keeps it simple. Every color comes in all seven door profiles, and moldings, peel and stick film, panel and toe kick, and decorative panels are available in every color.
Door profiles
- Shaker Oxford
- Shaker Beveled
- Seamless
- Shaker Tailored
- Shaker Tailored Seamless
- Curved Raised
- Square Raised
Colors
Solids: Powder, Frost, Haze, Anchor. Woodgrains: Wisp Ash, Meadow Oak, Drift Elm. Every color is available in every profile.
Accessories
Every DuraFuse kit can include matching accessories to finish the job. Here is what each one offers. See the accessories page for the full list.
Peel and Stick Film
For cabinet boxes, offered in select colors. Comes in 2 ft W by 8 ft H and 4 ft W by 8 ft H sheets. It matches the doors, and the woodgrain runs in the 8 ft direction.
1/8" Panel
A 1/8 inch panel, raw on all sides.
Decorative Panel
A 3/4 inch panel, finished and edge banded.
Toekick
1/8 inch thick, fixed size of 4-1/2 inches by 92 inches long.
Paint and Touch-Up Pens
Paint comes in every color and sticks to any clean, dull surface. It is a latex, water-based paint with a satin finish that is durable, lightfast, moisture resistant, and washable. Touch-up pens come in every color to fix minor scratches. Rub off any excess with a soft cloth or steel wool.
Caulk and Wood Putty
Available in white. Paintable caulk and wood putty for sealing gaps, filling nail holes, and repairing minor imperfections. Paint it after curing for a smooth, professional finish.
Hinges
DuraFuse hinges come in several overlays, in self close and soft close, for framed and frameless cabinets. Soft close hinges are hidden, six-way adjustable, and close almost silently. Self close hinges are six-way adjustable and pull the door shut on their own.
The chart shows which mounting types are available for each overlay. Not sure which overlay you need? Use our hinge overlay calculator.
| Hinge overlay | Framed | Frameless | Self Close | Soft Close |
|---|---|---|---|---|
| 1/2" | ✓ | ✓ | ✓ | |
| 3/4" | ✓ | ✓ | ✓ | |
| 1" | ✓ | ✓ | ✓ | |
| 1-1/4" | ✓ | ✓ | ✓ | |
| 1-3/8" | ✓ | ✓ | ||
| Full Overlay | ✓ | ✓ | ✓ | |
| 45 Degree | ✓ | ✓ | ||
| Blind | ✓ | ✓ | ||
| Inside Square Corner | ✓ | ✓ | ✓ |
A green check means the option is available for that overlay.
Moldings
DuraFuse offers three molding profiles, all in 92 inch lengths, to trim and finish the installation. Each cross section below shows the profile shape and its size.

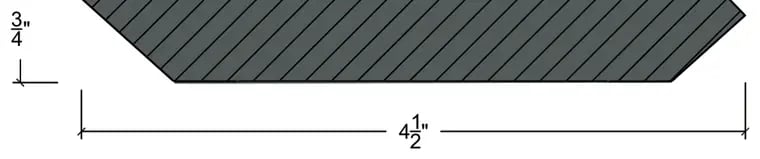

4.5" Crown
3/4" tall by 4-1/2" wide

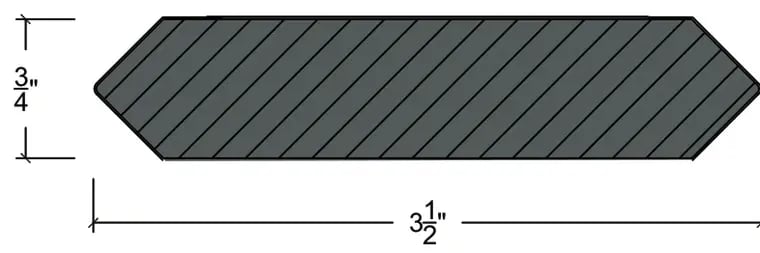

Shaker
3/4" tall by 3-1/2" wide
Scribe
1/4" tall by 3/4" wide
Common questions
Which door profiles does DuraFuse come in?
Seven: Shaker Oxford, Shaker Beveled, Seamless, Shaker Tailored, Shaker Tailored Seamless, Curved Raised, and Square Raised. Every profile comes in all seven DuraFuse colors.
What colors does DuraFuse come in?
Seven. Four solids (Powder, Frost, Haze, Anchor) and three woodgrains (Wisp Ash, Meadow Oak, Drift Elm). Every color is available in every profile.
What hinge overlays does DuraFuse offer?
For framed cabinets, DuraFuse offers 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, and 1-3/8 inch overlays. Frameless cabinets use full overlay, 45 degree, blind, and inside square corner hinges. Both self close and soft close options are available.
What molding profiles can I order for DuraFuse?
Three: the 4.5 inch crown, shaker, and scribe. All come in 92 inch lengths.
Do DuraFuse accessories match the door colors?
Yes. Peel and stick film, panels, toe kick, and decorative panels are color matched to the doors. Caulk and wood putty come in white and can be painted after curing.
